Generator Inlet Box Suppliers

What We Manufacture

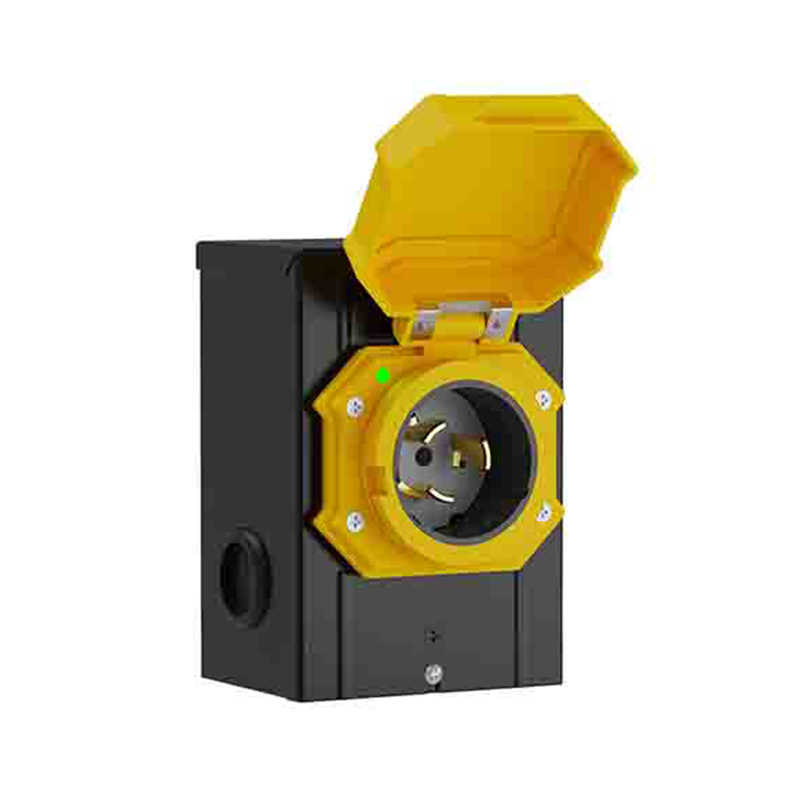

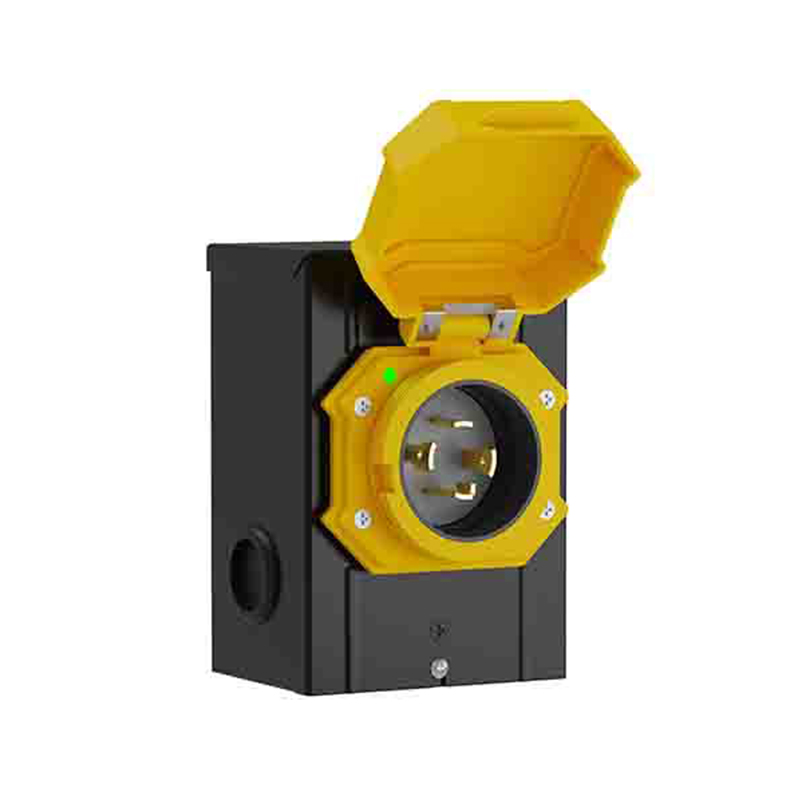

We build Generator Inlet Boxes as weather-resistant power inlets that accept a generator cord and feed a transfer switch, panel or receptacle system. Each box combines a flanged inlet, a gasketed cover and a mounting enclosure. The inlet interface determines compatibility with the generator cord, so we produce the full set of common North American NEMA patterns.

Our production covers both 3-prong and 4-prong inlet types, with amperage ratings from 20 A to 50 A. We also supply matching Generator Twist Lock Plugs and Generator wiring cable so a complete cord set can be sourced from one factory.

Generator Inlet Box Range and Application Fit

The table below maps our standard inlet configurations to typical generator sizes and connection points. We use this matrix when preparing a proposal, because the inlet pattern must match the generator cord plug and the building or vehicle wiring.

Materials and Construction

We select enclosure materials to suit the installation environment. Weather-exposed boxes use UV-stabilized thermoplastic or powder-coated metal, with a gasketed cover that seals the inlet when no cord is connected. Contacts are brass or copper alloy, sized to the rated current, and the flanged inlet is mounted to the enclosure with a gasket to keep moisture out of the wiring cavity.

• Enclosure: UV-stabilized thermoplastic or powder-coated steel, depending on model and target market.
• Contacts: Brass or copper alloy, matched to 20 A, 30 A or 50 A ratings.
• Sealing: Gasketed cover and flange gasket for outdoor and marine installations.
• Hardware: Corrosion-resistant screws and strain-relief provisions for the incoming cable.

Configuration Options

Because inlet boxes sit between a generator cord and fixed wiring, configuration is usually driven by the cord plug and the panel or transfer switch. We confirm the following variables before quoting:

• Inlet pattern and amperage rating
• Number of poles and wires, including grounding type
• Enclosure material and color
• Cover style and sealing method
• Mounting flange dimensions and knockout arrangement
• Terminal type and wire range
• Private label, packaging and cord-set matching

Where a project uses a non-standard inlet pattern or enclosure, our R&D team can develop the box from drawings or samples. We also produce matching Power cord assemblies and Extension Cord products for the same generator system.

Quality Control and Compliance

Our factories operate under an ISO 9001 Quality Management System, and our products hold c(UL)us, ETL and CE safety certifications. Incoming materials, molding, assembly and final inspection are controlled at each stage. Our in-house testing lab checks continuity, polarity, insulation resistance and mechanical fit before shipment.

For generator inlet boxes, the critical checks are contact retention, terminal torque, cover sealing and correct pole/wire configuration. We retain compliance documentation for the applicable models and can supply the relevant certificate references with the order.

Installation and System Integration

A Generator Inlet Box is installed on an exterior wall or panel, wired to a transfer switch or inlet circuit, and connected to the generator with a matching cord. The box must be mounted with the cover oriented to shed water, and the incoming cable must be secured with a strain relief or conduit fitting.

• Confirm the generator cord plug matches the inlet pattern.
• Verify circuit amperage and conductor size against the transfer switch.
• Mount the enclosure with the gasketed cover facing away from direct water spray.
• Torque terminals to the specification and test continuity before energizing.
• Keep the cover closed when the inlet is not in use.

Information We Use to Configure Your Solution

To prepare a suitable Generator Inlet Box proposal, we need the working point and the physical interface. The following inputs let us confirm the model, enclosure and packaging without back-and-forth.

Maintenance, Spare Parts and Serviceability

Generator inlet boxes are passive components, but the cover gasket, mounting screws and inlet contacts are the parts most likely to need attention over time. We can supply replacement gaskets, covers and inlet assemblies for the models we manufacture. For OEM customers, we keep production records that allow us to reproduce a specific configuration on repeat orders.

We recommend periodic inspection of the gasket, terminal torque and contact condition, especially in outdoor or marine installations. Our product manuals and installation guidance cover the basic checks.

Packaging, Documentation and Delivery Scope

Standard export packaging uses individual cartons with product labels, master cartons and palletization as required. We can include installation instructions, wiring diagrams and certificate references in the shipment. Private-label packaging and printed manuals are available for OEM programs.

Our Generator Inlet Box range is produced in China and at our overseas facility in Cambodia, which gives us flexibility for customers sourcing from multiple regions. The same quality system and inspection criteria apply at both locations.

Frequently Asked Questions
